ADA Wall Mounted Bathroom Sink 2418

Beautiful. Modern. Effortlessly ADA-Compliant.

Bring refined simplicity and ADA-ready function into your bathroom with the Tile Vanity ADA Wall Mounted Bathroom Sink 2418. Designed with clean architectural lines, a spacious rectangular basin, and a modern integrated deck, this sink delivers both accessibility and high-end style.

Perfect for residential, commercial, hospitality, and designer-grade projects, the 2418 model ensures comfortable wheelchair clearance while maintaining the smooth, elegant visual language Tile Vanity is known for.

Crafted from durable stone resin, this wall-mounted sink offers a matte, modern aesthetic with exceptional resistance to stains, scratches, and moisture—made to stay beautiful for years to come.

✨ Why You’ll Love the ADA 2418 Sink

ADA-compliant when installed at required measurements

Clean, modern silhouette for boutique-style bathrooms

Spacious basin with integrated slope for efficient drainage

Stone resin durability with a smooth luxury feel

Easy-to-clean, non-porous surface

Wall-mounted design maximizes open floor space

Perfect for vanities, commercial restrooms, or minimalist stand-alone installations

🎨 Finish

Matte White — timeless, modern, and beautifully versatile.

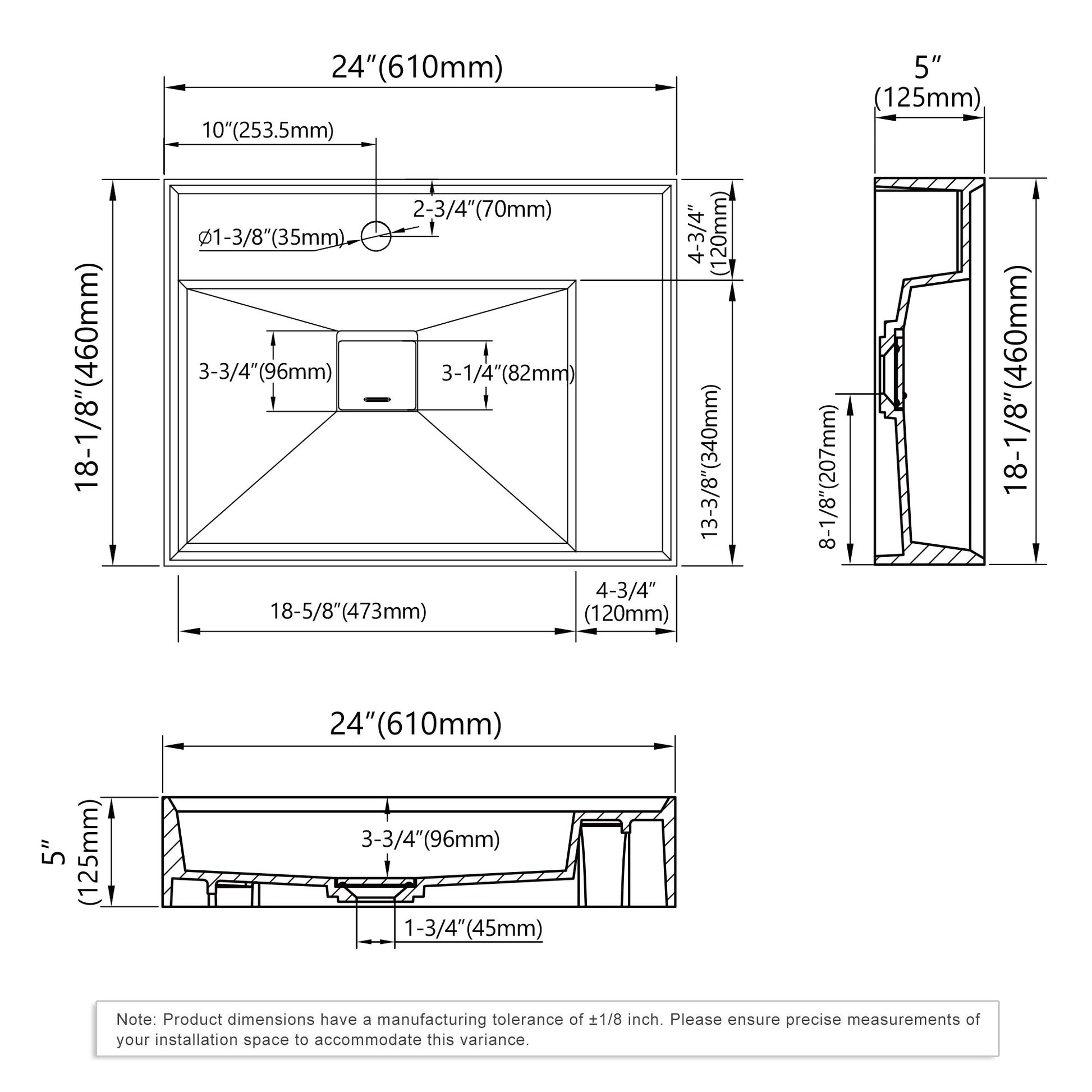

📐 Dimensions & Specifications (from attached drawings)

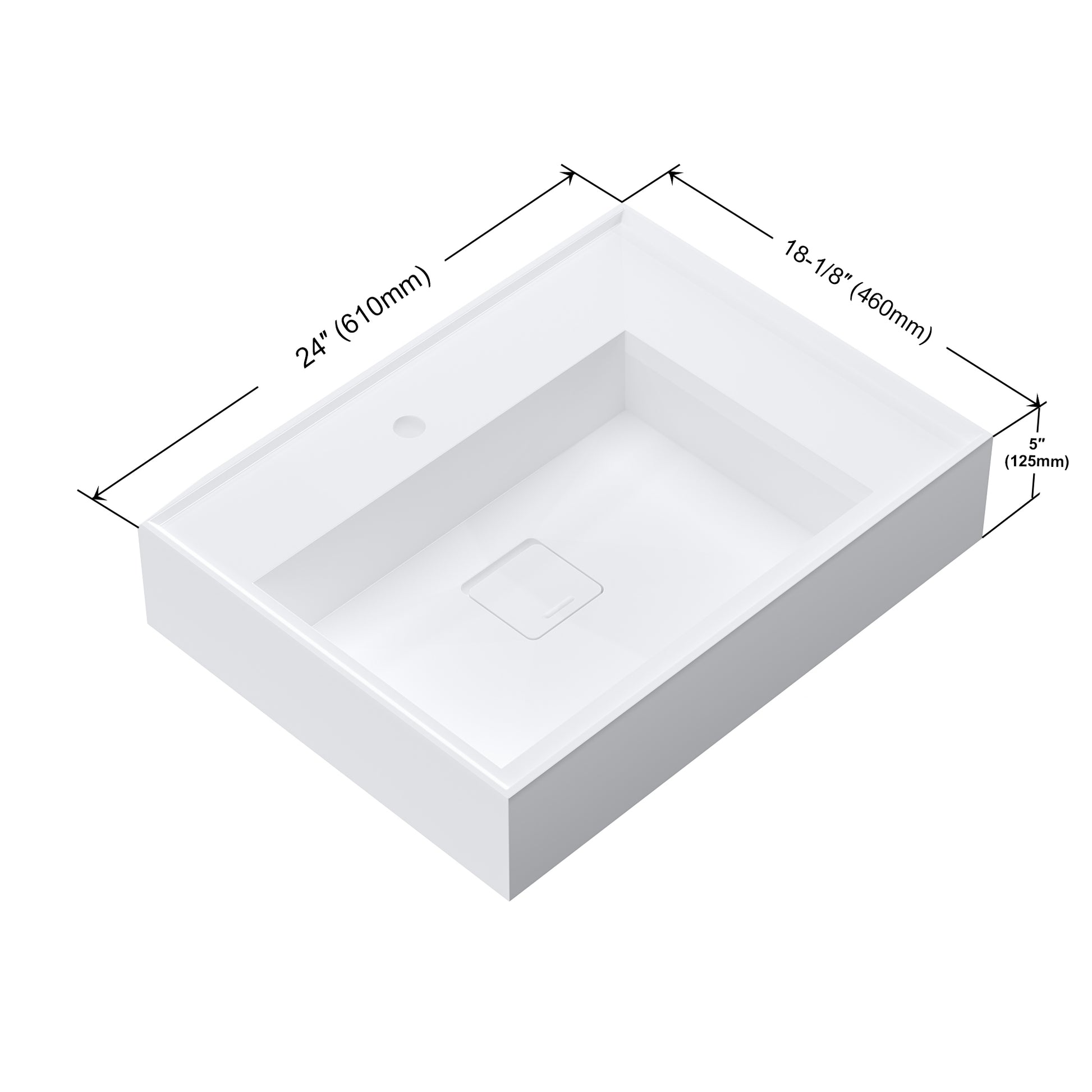

Overall Size:

24" W x 18-1/8" D x 5" H
(610mm x 460mm x 125mm)

Basin Interior Dimensions:

Width: 18-5/8" (473mm)

Depth: 13-3/8" (340mm)

Bowl Depth: 8-1/8" (207mm)

Deck Space:

Right-side deck: 4-3/4" (120mm)

Faucet hole center from side: 10" (253.5mm)

Faucet Hole Size: Ø 1-3/8" (35mm)

Overflow: Integrated

Material: Stone Resin
Installation Type: Wall Mount
Faucet Configuration: Single-hole
Mounting Support: Designed for ADA wall mounting; installer must ensure reinforcement per local code.

♿ ADA Installation Guidance

To meet ADA requirements (when installed properly):

Maximum height to rim: 34"

Minimum knee clearance: 27" H, 30" W, 17–25" D

Toe clearance: 9" minimum, 6" max height

Front approach clearance must follow ADA standards

Always consult official ADA guidelines and your local building code.
