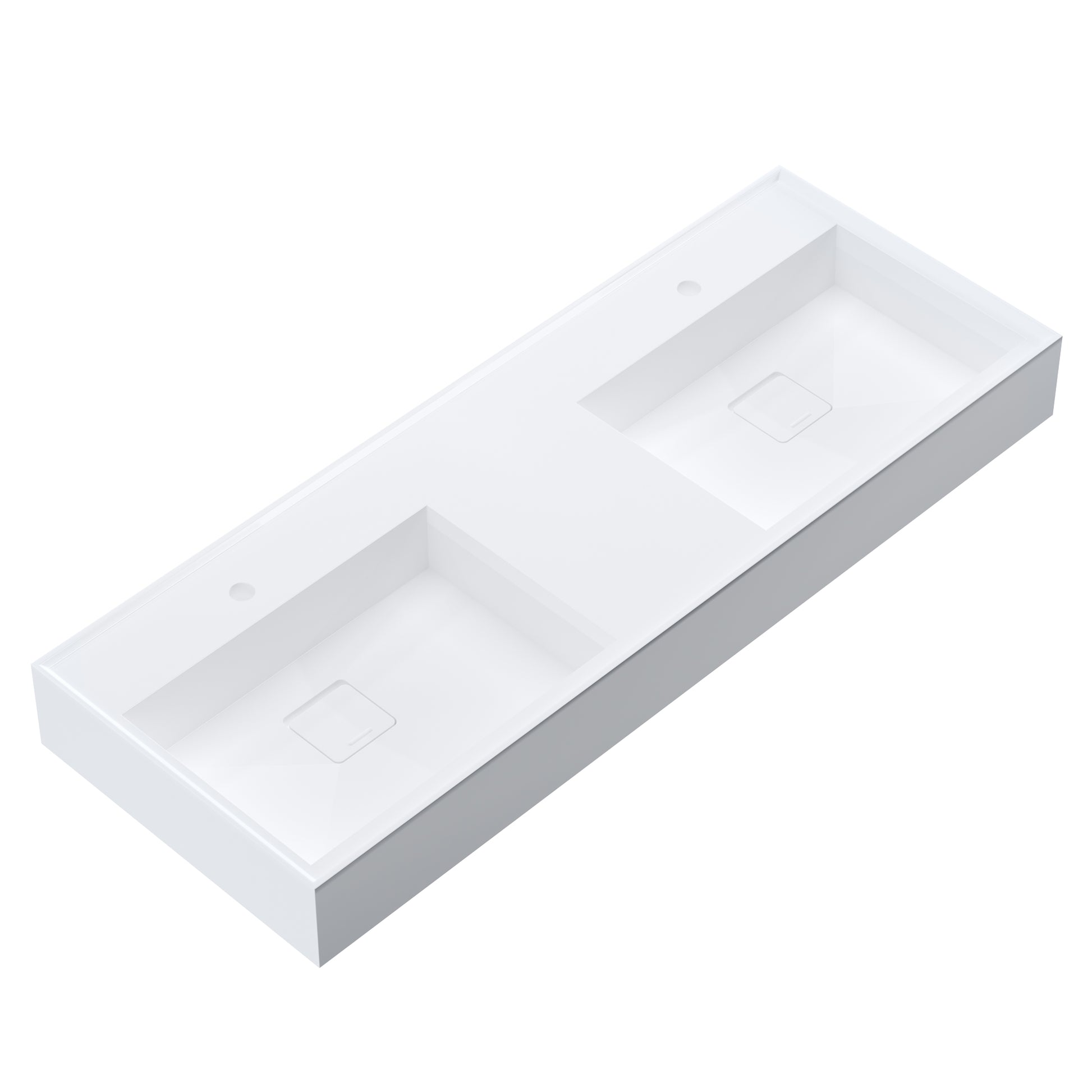

48" ADA Double Wall-Mounted Bathroom Sink

Beautiful. Accessible. Modern. Designed for Universal Comfort.

Bring elegant accessibility to your bathroom wall-mounted design engineered to meet ADA compliance when installed according to ADA guidelines. With its clean lines, seamless surface, and dual integrated basins, this sink blends modern aesthetics with the functional space needed for everyday comfort and universal use.

The minimalist silhouette enhances both commercial and residential ADA environments—perfect for office restrooms, hospitality spaces, multi-family properties, and stylish accessible home bathrooms. Crafted from premium stone resin with a smooth matte finish, this sink offers durability, refined beauty, and easy maintenance in one elevated design.

✨ Why You’ll Love It

Fully ADA-ready design (when installed per ADA height & clearance requirements)

Beautiful minimalist double-basin layout

Wall-mounted floating look enhances modern spaces

Durable stone resin with a smooth, easy-clean surface

Integrated rectangular basins for a clean, architectural appearance

Ideal for commercial or residential ADA bathrooms

Concealed metal support system for safety and stability

📐 Dimensions & Specifications

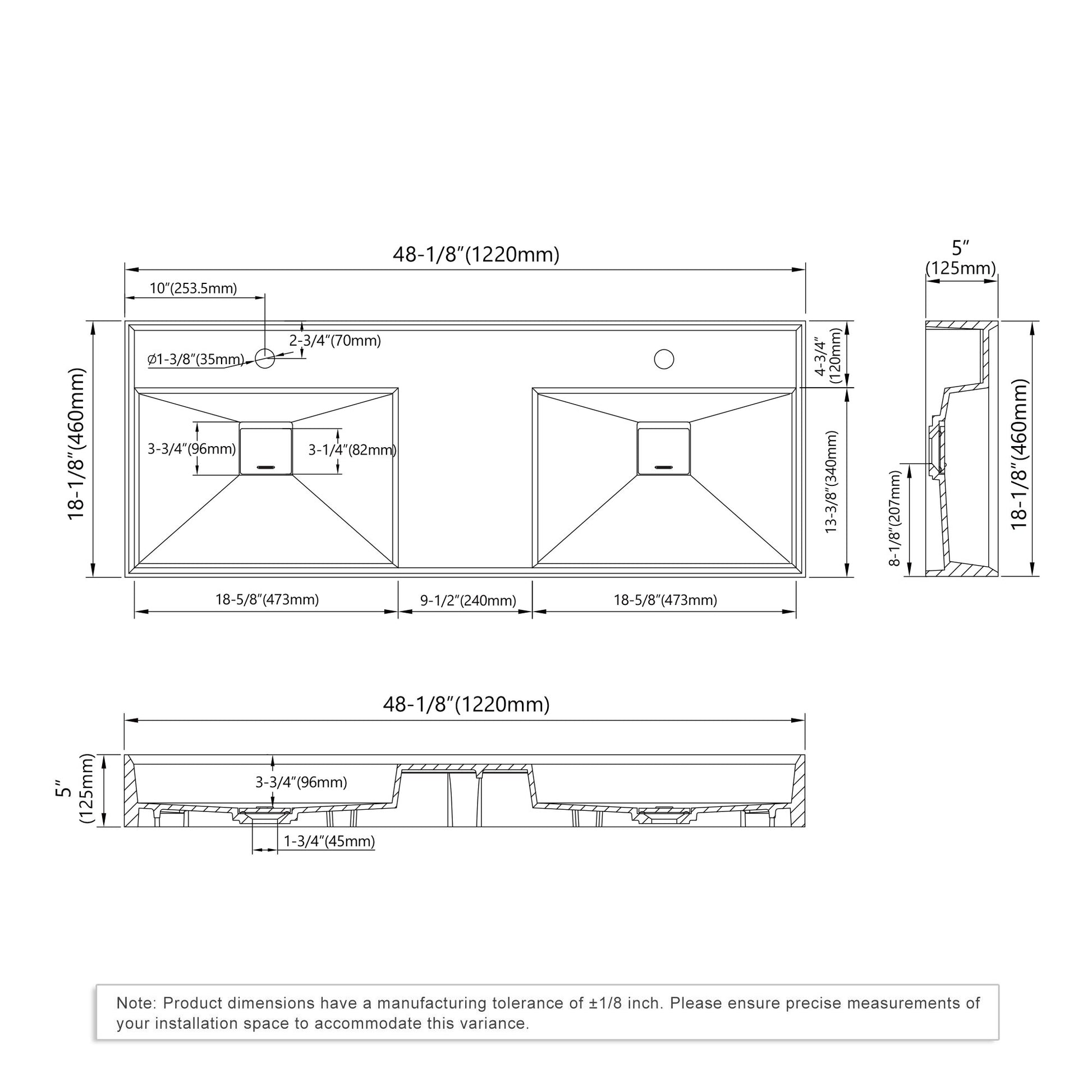

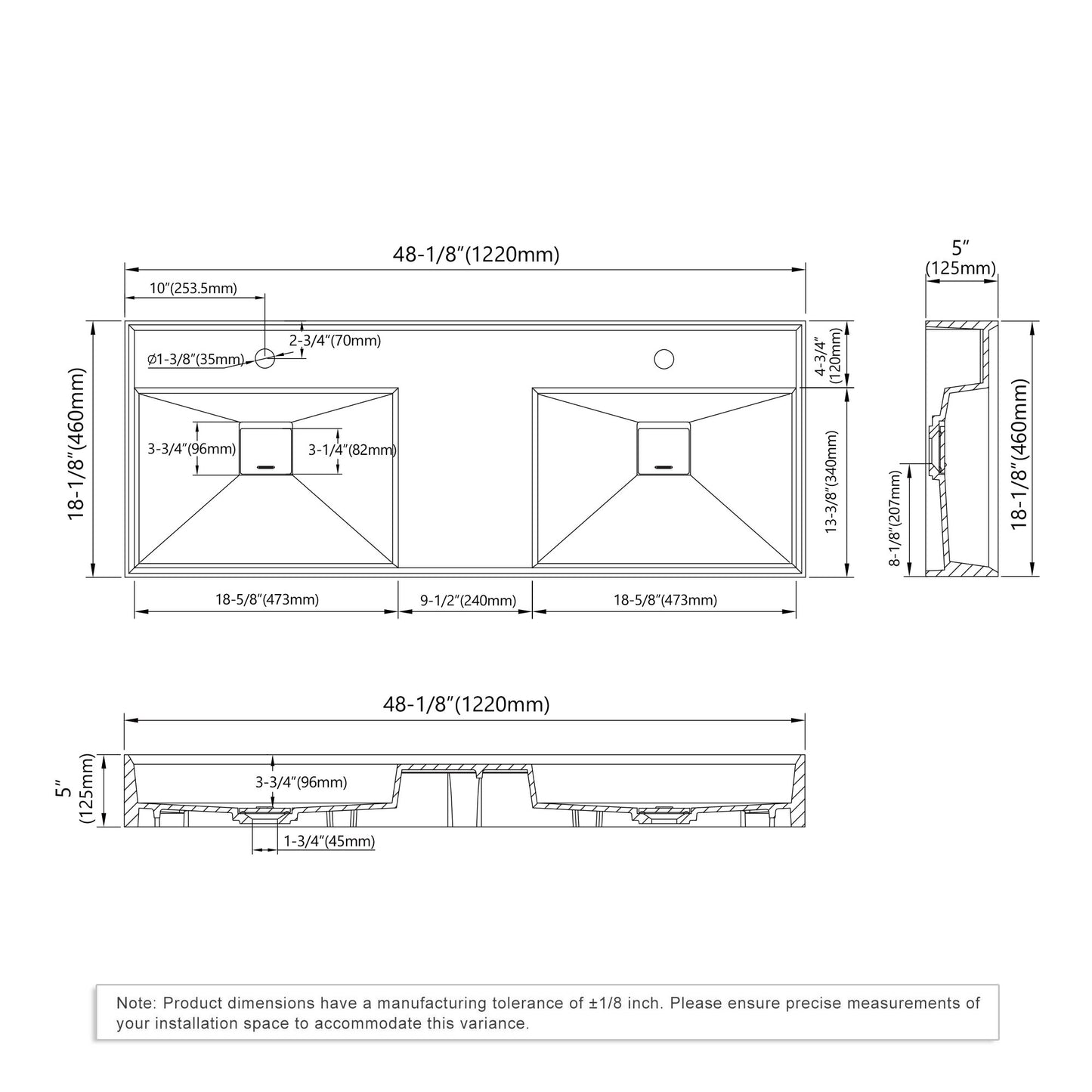

(Based on attached technical drawings)

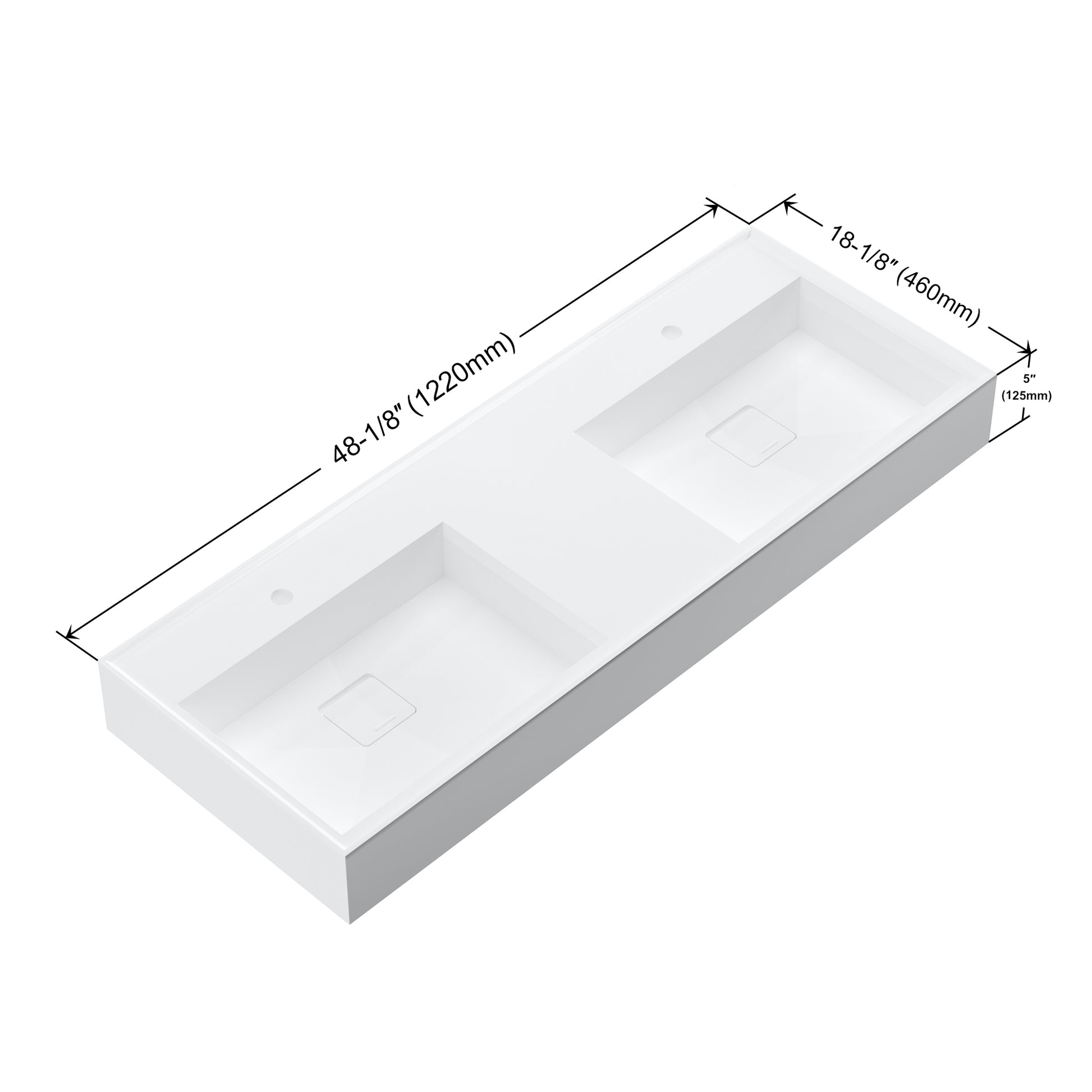

Overall Dimensions

Width: 48-1/8" (1220 mm)

Depth: 18-1/8" (460 mm)

Thickness: 5" (125 mm)

Basin Dimensions (Each Basin)

Basin Width: 18-5/8" (473 mm)

Space Between Basins: 9-1/2" (240 mm)

Interior Basin Depth: 13-3/8" (340 mm)

Basin Slopes:

Front-to-drain slope: 3-1/4" (82 mm)

Rear-to-drain slope: 3-3/4" (96 mm)

Drain & Faucet

Drain Opening: Ø 1-3/8" (35 mm)

Faucet Hole: 2-3/4" (70 mm) (1-hole installation per basin)

Faucet Compatibility: All standard single-hole faucets

Support System

Heavy-duty metal reinforcement included

Supports ADA knee clearance requirements when mounted properly

ADA Requirements (per attached diagram)

When installed correctly:

Max counter height: 34"

Knee clearance: Min 27" (recommended 34" overall height from floor)

Toe clearance: 6" max depth, 9" min height

Forward approach: 18-1/8" recommended reach range

(Installer must verify final positioning meets ADA regulations.)

🛠 Installation Notes

Wall-mounted with metal support frame (included)

Professional installation recommended for ADA compliance

Allow for ±1/8" manufacturing tolerance

🧩 Ideal For

ADA commercial restrooms

Corporate offices & retail spaces

Hotels & hospitality

Multi-family properties

Modern accessible home bathrooms

🚚 Shipping & Delivery

Your ADA sink ships safely with reinforced packaging designed to protect the stone resin surface.

Shipping Details:

Smaller sink orders may ship UPS / FedEx

Most double sinks ship via LTL freight due to size & weight

LTL freight includes curbside liftgate delivery

Upon Delivery:

Inspect the shipment immediately

Any visible damage must be noted on the delivery receipt before signing

Damage or shortage claims must be submitted within 3 business days

↩️ Return & Refund Policy

Returns accepted within 30 days

Sink must be unused, uninstalled, and in original packaging

Customer is responsible for return freight + restocking fee

Shipping costs are non-refundable

No claims accepted after installation

Installed items are considered accepted as-is
